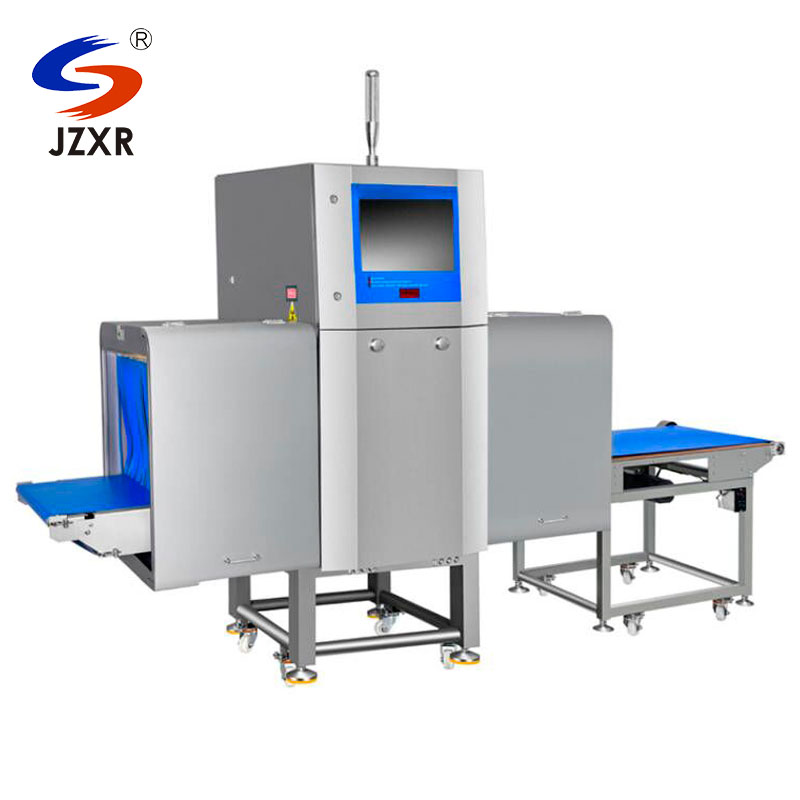

    Food X-ray Inspection Machine for Carton Box Packaging

    Model NO: XR-100D-6550 X-ray Inspection Machine for Carton Box Packaging
    Alarm Form: Display Alarm
    X-ray Generator: 100kv, 240W
    X-ray Direction: From The Top
    Detection Tunnel Size: 700mm(W)*350mm(H)
    Conveyor Speed: 10-50 M/Min
    Max. Bearing Capacity: 25 Kg
    Best Detection Accuracy: SUS Ball: Φ0.4mm, SUS Wire: Φ0.2 *2mm,
    Screen: 17 Inch Full Color Touchable Screen
    X-ray Leakage: < 1μsv/H
    Portective Mode: Lead-Free Food Grade Soft Curtain
    Conveyor: White Food Grade PU Belt
    Specification: 650mm(W)*500mm(H)

    GET A QUOTE
    Food X-ray Inspection Machine for Carton Box Packaging XR-100D-6550
    Model XR-100D-6550
    X-ray source 350W 80KV
    Tunnel size(W*H) 650*500mm
    Max sensitivity SUSl ballΦ0.4mm, SUS wireΦ0.2*2mm,CeramicsΦ1.0mm, GlassΦ1.0mm
    Conveying speed 10-50m/min
    Screen 17'' Full touchable screen
    Interface for data LAN port,USB port
    Working environment Temperature:-10-40ºC(Cooling:industrial air condition),Humidity:30%-90%,No frost(humidity control:dehumidifier)
    X-ray leakage <1µSv/hour
    Protective mode Protective soft curtain(removable)
    Alarm Standard: Sound and light alarm
    Optional: Stop / Rejection system
    Power supply AC220V ±10% 50/60Hz,1.5kVA Max
    Material SUS304
    Conveyor load Standard: Max 5kg
    Customized: > 5kg


    Food X-ray Inspection Machine for Carton Box Packaging XR-100D-7035
