Food X-ray Inspection System

Heavy Duty X-ray Inspection System Heavy Duty X-ray Inspection System

Heavy Duty X-ray Inspection System

Model NO.: XR-100D-6550 X-ray Inspection System
Alarm Form: Buzzer and Red Light Alarms
X-ray Generator: 80kv, 350W
X-ray Direction: From The Top
Detection Tunnel Size: 650mm(W)*550mm(H)
Conveyor Speed: 10-50 M/Min
Conveyor Material: Blue Food Grade PU Belt
Max. Bearing Capacity: 25 Kg or Customized
Best Detection Accuracy: SUS Ball: Φ0.4mm, SUS Wire: Φ0.2*2mm,
HMI: 17 Inch Touchable Screen
X-ray Leakage: < 1μsv/H
Cooling Mode: Pfannenberg Air Conditioning
Material of Construction: SUS 304
Specification: For large package

GET A QUOTE


Specifications

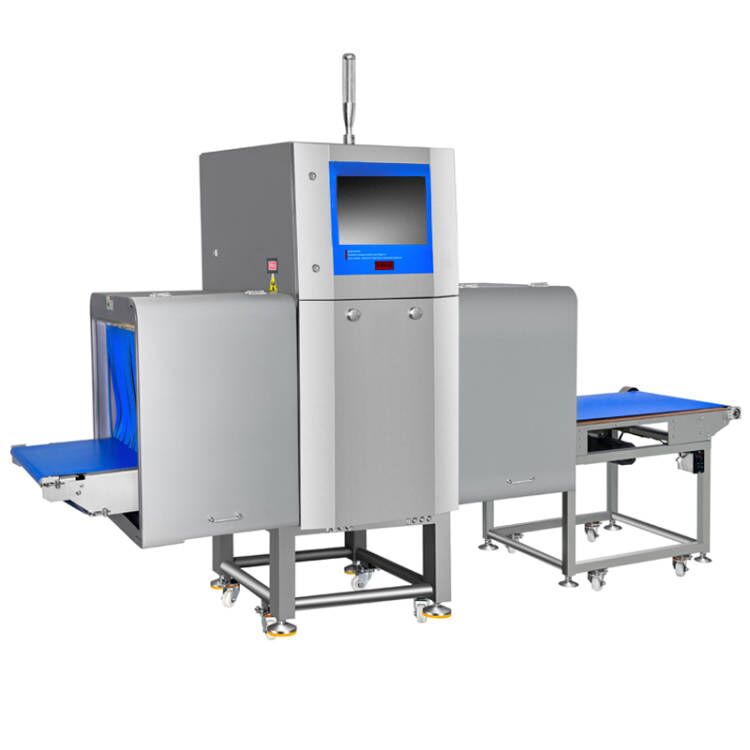

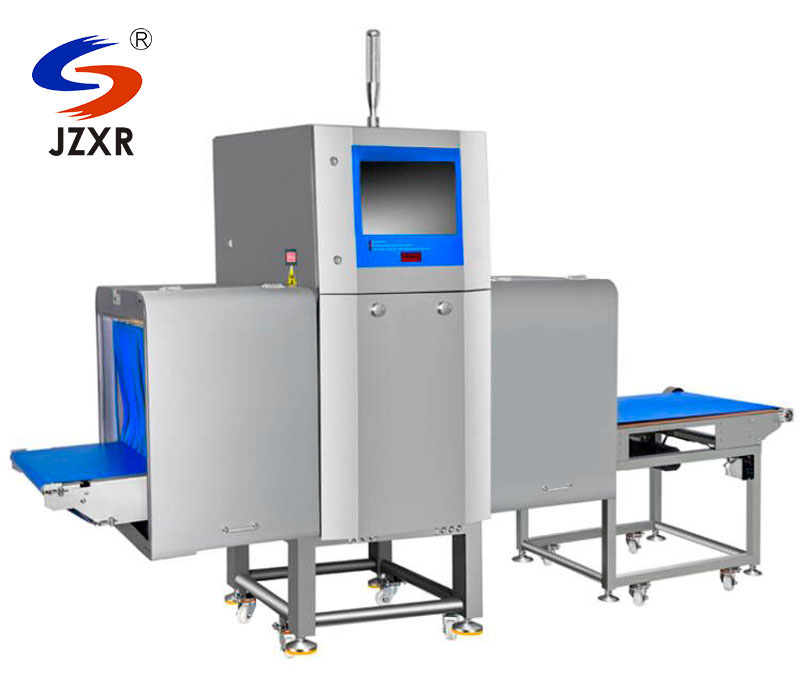

Heavy Loaded X-ray Inspection System for Large Packaged Food XR-100D-6550
heavy duty x-ray inspection system

Model XR-100D-6550
X-ray source 350W 80KV
Tunnel size(W*H) 650*500mm
Max sensitivity SUSl ballΦ0.4mm, SUS wireΦ0.2*2mm,CeramicsΦ1.0mm, GlassΦ1.0mm
Conveying speed 10-50m/min
Screen 17'' Full touchable screen
Interface for data LAN port,USB port
Working environment Temperature:-10-40ºC(Cooling:industrial air condition),Humidity:30%-90%,No frost(humidity control:dehumidifier)
X-ray leakage <1µSv/hour
Protective mode Protective soft curtain(removable)
Alarm Standard: Sound and light alarm
Optional: Stop / Rejection system
Power supply AC220V ±10% 50/60Hz,1.5kVA Max
Material SUS304
Conveyor load Standard: Max 5kg
Customized: > 5kg



Our Customers



Customers of Juzheng X-ray Inspection Case

Certifications



Juzheng X-ray Inspection Machine Certifications
